Cameo OPUS SP5 FC

Name: Cameo OPUS SP5 FC
Brand: Cameo
SKU: CLOSP5FC

Moving head

profile Spot Moving Head with 300 W Full Colour RGBAL-LED
display the complete colour spectrum with CRI >90 and TLCI 93
high-quality optic with especially long zoom range of 6° to 44°
even projection without colour shadows
fourfold diaphragm slider system with +/- 45° rotation

Variante:

For details about the price, please ask a SoundCreation consultant.

Central warehouse: 0

Shipping free

Warranty 24 months

Returns 14 days

request details

Create perfect displays for your light presentations with a broad colour palette and lightning-fast colour changes with the Cameo OPUS® SP5 FC. The powerful Profile Spot Moving Head reproduces even projection without colour shadows thanks to its high-quality optical system. It features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing. A continuously adjustable frost filter supplies a soft, washlight-like spread. With its flicker-free and almost noiseless operation, plus a colour reproduction index of over 90, the spotlight is superbly suited for use in theatre, film and TV production.

The OPUS® SP FC features four diaphragm sliders for creating a range of geometric shapes. These can be individually angled and inserted all the way for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning. Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.

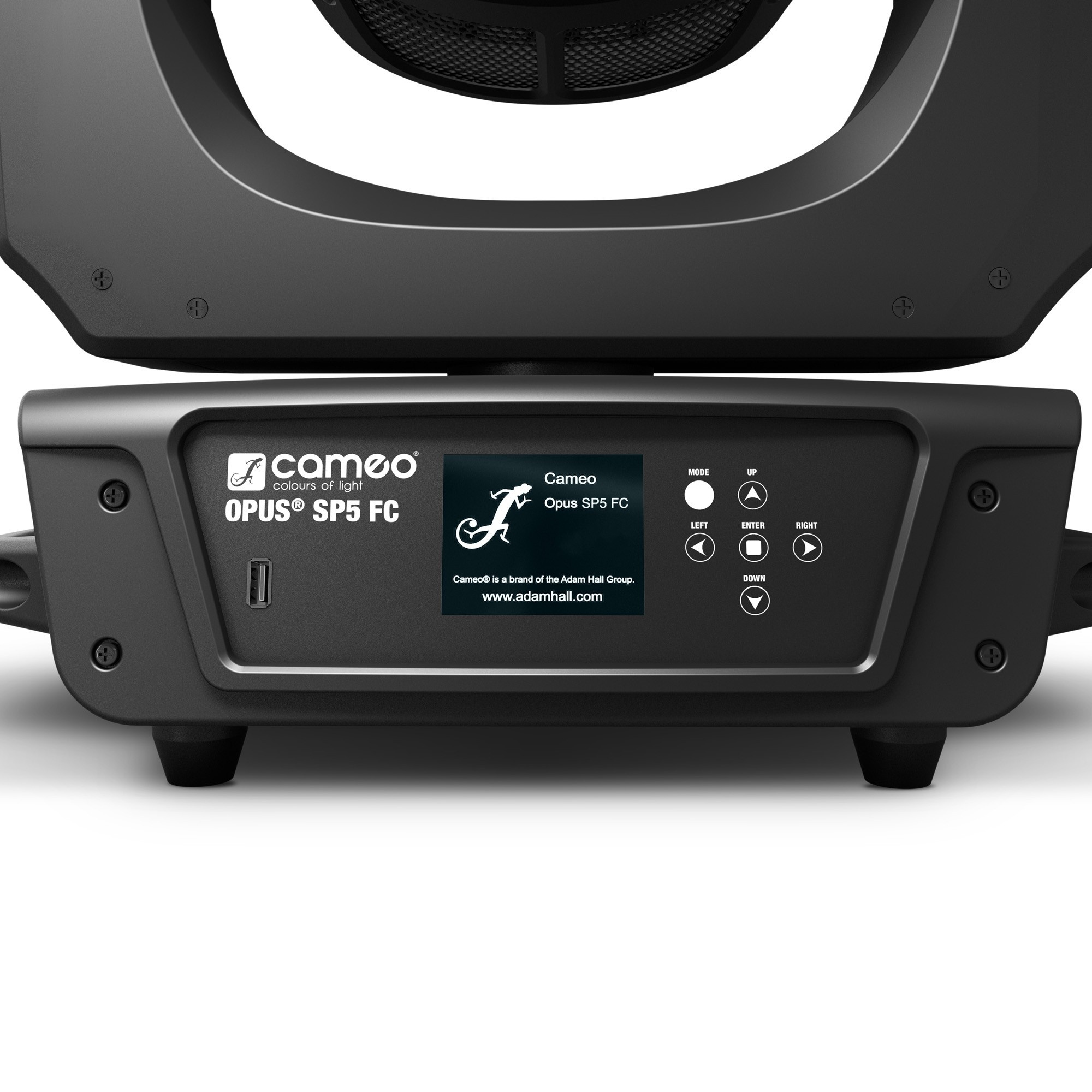

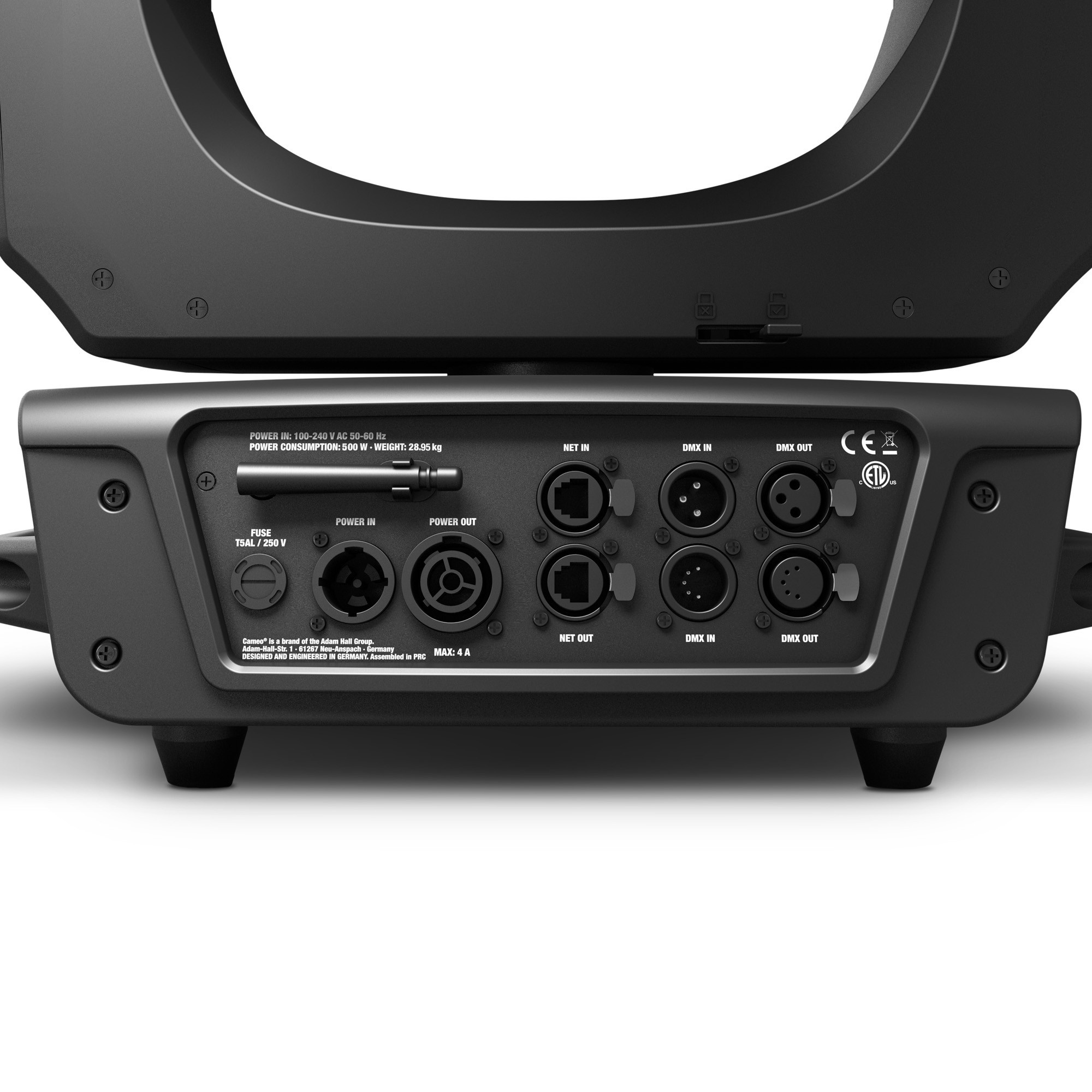

The OPUS® SP5 FC offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. Its robust ABS and metal housing is equipped with Neutrik® DMX and powerCON TRUE1 power sockets, while highly efficient heat pipe cooling and temperature-controlled fans ensure optimal operation. A battery-powered touchscreen display and 6 additional touch buttons facilitate convenient, mains-free configuration and two methods for navigation. The spotlight is supplied with two Omega brackets and power cable

Specifications:

Product type: LED Moving Lights

Type: Moving Head

Colour spectrum: RGBAL

Number of LEDs: 1

Average LED lifetime: > 20000 hours

LED type: 300 W

Refresh rate: adjustable to 25000 Hz

Dispersion: 6 - 44 °

DMX input: XLR 3-pin male, XLR 5-pin male

DMX output: XLR 3-pin female, XLR 5-pin female

DMX mode: 33-channel

DMX Functions: Animation Wheel, Auto Movement, Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Framing Blade Rotation, Framing Blades, Frost, Gobo Wheel 1, Gobo Wheel 2, Iris, PAN, PAN FINE, Prism, Rotation Fine Gobo Wheel, Rotation Gobo Wheel, Rotation Prism, Set Dimmer Curve, Strobe, TILT, TILT FINE, Zoom, Zoom Fine

PAN movement: 540

TILT movement: 270

High Speed Strobe: > 20 Hz

Standalone modes: Auto Mode, Settings, Static

Controls: Enter, Mode, Value Down, Value Up

Indicators: Graphic Display

Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz, Neutrik True 1 IN / OUT

Power consumption: 500 W

Housing material: ABS plastic, Metal

Cabinet colour: Black

Protection class IP: IP20

Cooling: Heat-pipe cooling system with temperature controlled fans
