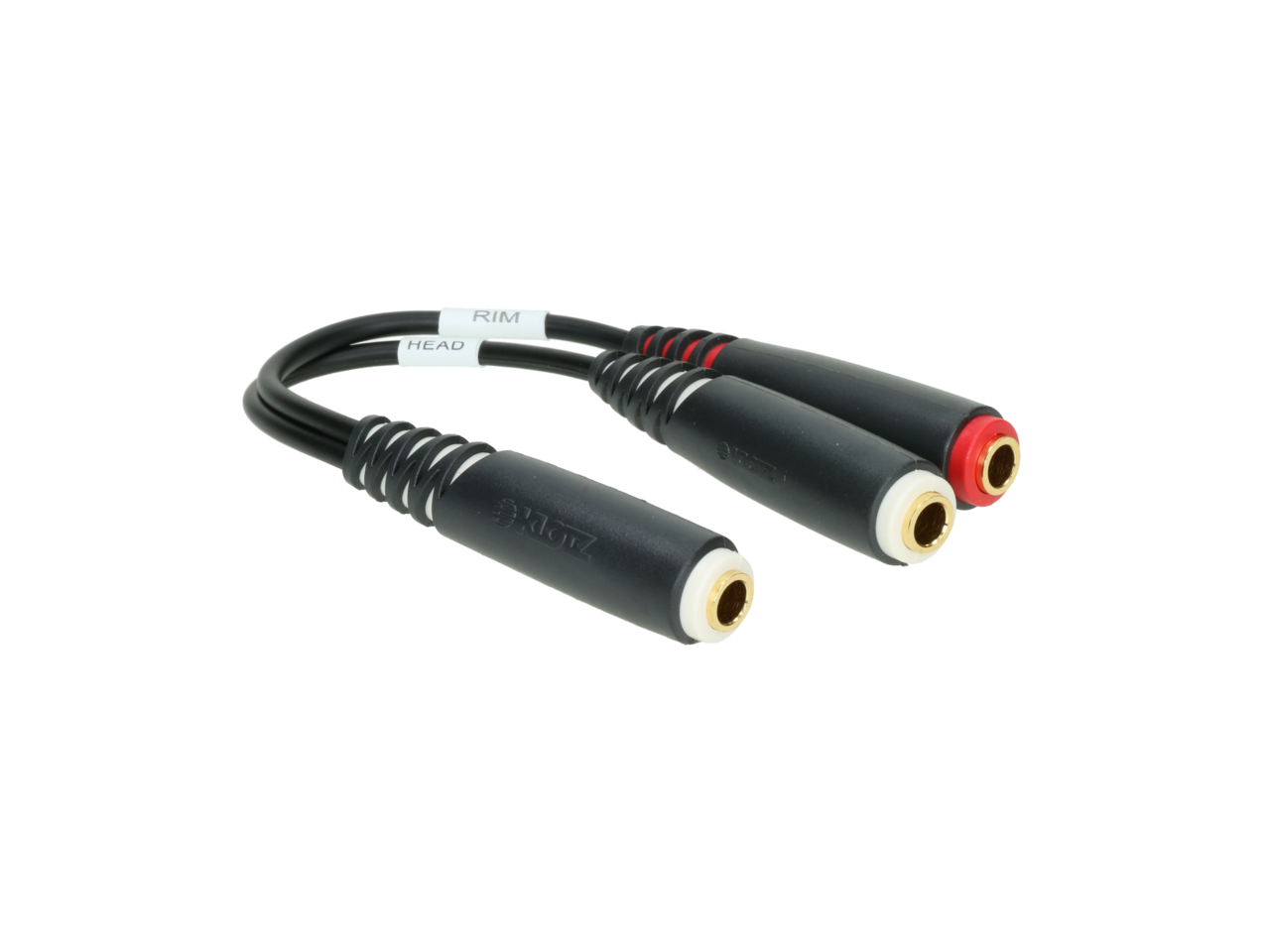

Klotz E-Drum splitter - Y adapterTRS socket 6.3 mm - 2 x TS socket 6.3 mm 0,2 m

• Y-adapter for connecting two e-drum pads to one trigger input
• built-in resistor to delay the signal flow of one of the pads
• suitable for Roland TD-9, TD-11, TD-15, TD-17 and TD-27
• compatible with EFNOTE modules, Alesis Crimson and Alesis Strike
• very durable
• really lightweight
• very flexible
• 24 carat gold-plated contacts for loss-free transitions

High-quality Y-adapter for connecting two e-drum pads to one two-zone trigger input. Thus, two e-drum pads can be connected to only one trigger input of an e-drum module. For this application conventional audio Y-adapters usually do not work, because it needs a built-in resistor to delay the signal flow of one pad. That's why this special trigger splitting adapter was developed - the E-Drum Splitter! This Y-adapter works perfectly with all Roland modules and also the e-drum modules of most other manufacturers like EFNOTE or Alesis.

cable

cable typ: PCU201-Z, Ø 3.8 mm x 7.6 mm

jacket: PVC

connectors

connector 1: jack 3p

contact 1: gold-plated

connector 2: jack 2p

contact 2: 24 carat gold-plated contacts for loss-free transitions

Caracteristici

Jack design	socket 3p - 2x socket 2p
shell/sleeve	plastic, color coded
cable color	black
length	0.2 m
