CKS PAZ-1202

Zonal amplifier with media player

2-zone amplification with 120W output per zone for 100V or 8-16Ω speakers.
integrated media player supporting USB, SD, FM, and Bluetooth connectivity.
frequency range of 60 - 15,000 Hz for versatile audio applications.
multiple input options including balanced XLR and unbalanced RCA connections.
compact design with dimensions of 484 x 405 x 88 mm and a weight of 6.6 kg.

Variants:

569⁷⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2940 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

CKS PAZ-1202 Add to cart: 569⁷⁴ €

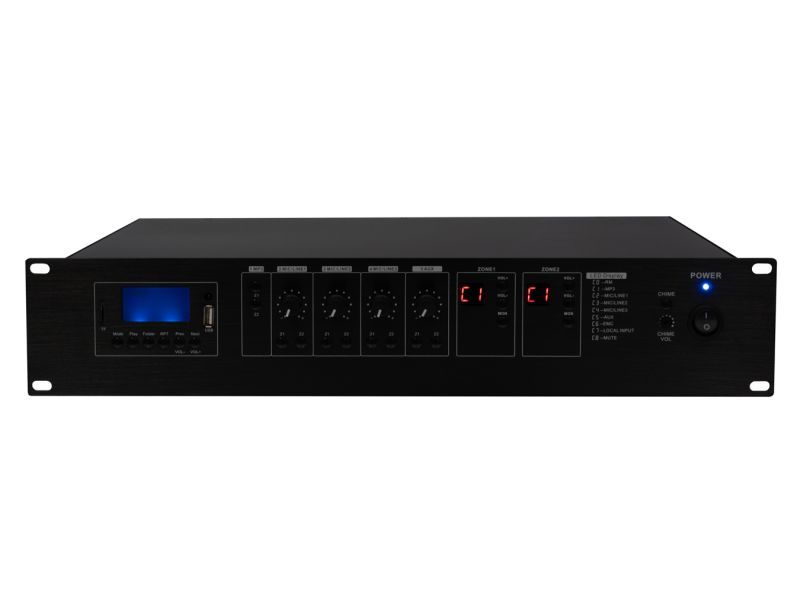

CKS PAZ-1202 - The 2-zone amplifier from the PAZ series is designed for installation in a 19-inch rack or for use on a table, making it ideal for both professional sound systems and commercial audio solutions, as it is equipped with outputs for speakers that accept 100V and 8-16Ω.

Amplification: 2 zones, 120W per output zone 100V or 8-16Ω
Input channels: 5
Integrated media player with USB/SD/FM and Bluetooth
Frequency range: 60 - 15,000 Hz
Inputs: MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
THD: less than 0.5%
S/N ratio: Line ≥ 85dB, Mic ≥ 72dB
Connection:
- Microphone/line 1-3: 2.5mV, balanced COMBO XLR input with phantom power +48V;
- Line 1 and EMC input: 250mV; RCA type;
- Two RJ445 ports for microphone and remote control panel
Line output: 0.775(0dBV)
Power supply: 230V AC; 50-60Hz
Power consumption, operation: 300 W
Dimensions: 484 x 405 x 88 mm, 2 U
Weight: 6.6 kg
