With XS Wireless IEM, you can easily connect additional receivers to a single transmitter – thus, more band members reach a new level of sound detail. The lightweight bodypack becomes practically imperceptible once clipped to clothing or a belt. You can connect the included IE 4 in-ear headphones or upgrade to the IE PRO series via the 3.5 mm output. The status LED shows you at a glance the battery level and connection status, while the high-contrast front panel allows for individual fine adjustments – from balance to focus modes, from equaliser to limiter – so you can build your own mix.
UHF bodypack receiver for extending existing XS Wireless IEM configurations
Compatible with the XSW IEM SR stereo transmitter
UHF frequency range: band A (476 - 500 MHz)
Lightweight bodypack with a back clip and control panel resistant to stage conditions

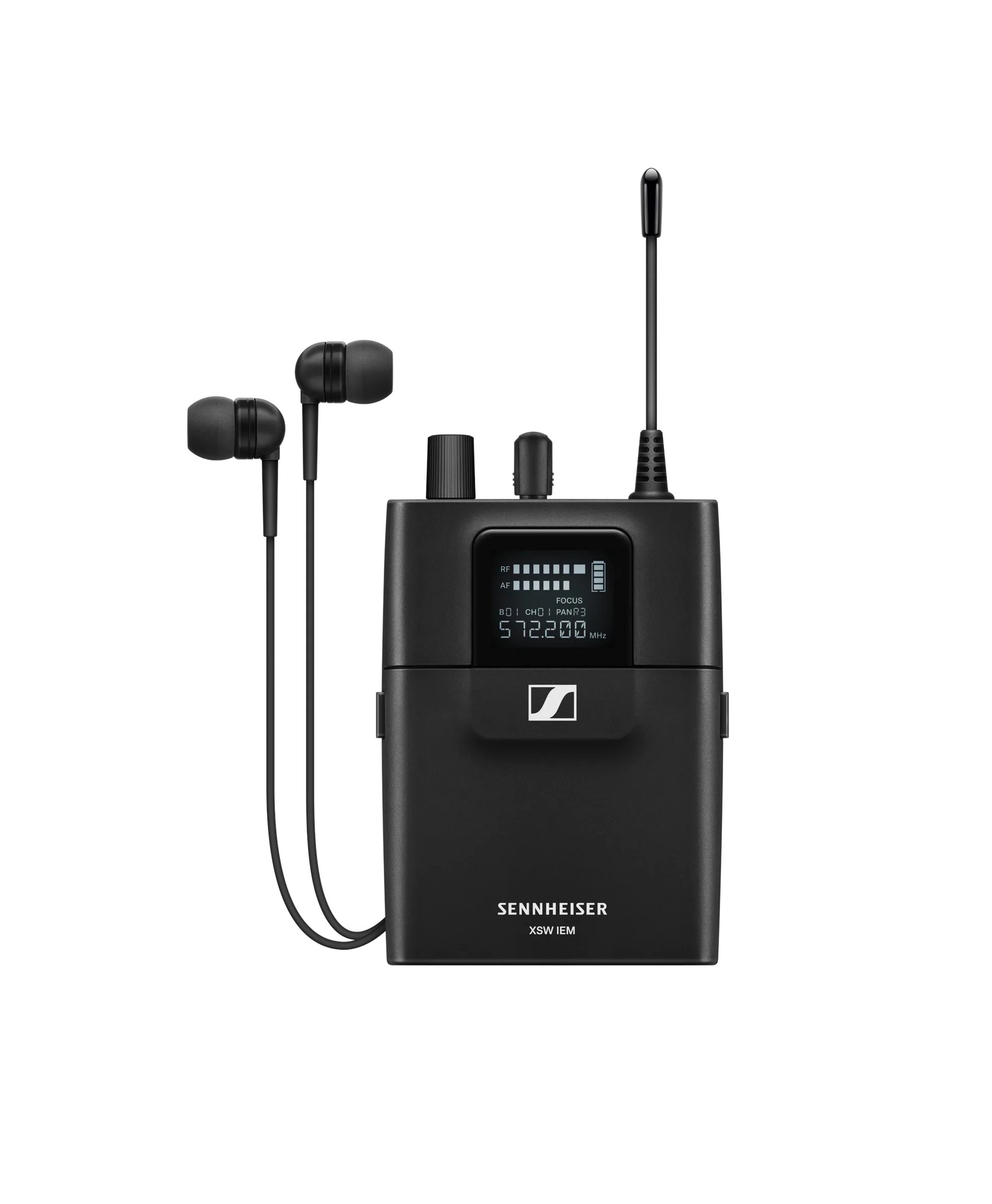

Standard 3.5 mm jack connector for the included IE 4 in-ear headphones or optional in-ear sets
Illuminated front panel and status LED for battery and connection
Menu access to the receiver's sound settings: focus modes, volume control, limiter and equaliser
Pan control for individual balancing of input channels
Specifications:
Wireless technology: Analog, UHF
Modulation: FM stereo with wideband
Maximum operating range: 100 m (line of sight)
Synchronization method: IR
Signal-to-noise ratio: ≥88 dB, 1 mV, maximum deviation
Total harmonic distortion (THD): ≤ 1%
Output level: 2 x 1.25 Veff at 16 Ohms
Equalisation: High boost: +10 dB at 13 kHz
Limiter: -10 dB
Frequency response: 45 Hz - 15 kHz
Crosstalk: Typical 45 dB (50 Hz - 10 kHz)
Power supply: 2 AA batteries, 1.5 V
Nominal voltage: 3 V
Housing: Plastic
Operating time: Approximately 6 hours, depending on volume
